Pass-Through Windows

Five distinct opening configurations. One precision-engineered platform. Residential · Hospitality · Commercial

Where the Counter Keeps Going

A pass-through window turns a kitchen counter into a servery, a bar into a terrace, and a wall into an invitation. Built on the SH-100 thermally broken aluminum profile platform, every Steinhaus pass-through pairs oversized insulated glazing with premium rollers and hinges — so a span this wide still opens with one hand and seals like a fixed window when closed.

Download Brochure

Technical Specifications

Profile System

Thermally broken aluminum

Glazing

5 mm + 27A + 5 mm insulated glass with argon

Water Resistance

700 Pa

Air Tightness

1.2 m³/(m·h)

Sound Insulation

35 dB

Thermal Insulation

2.0 W/(m²·K)

Wind Pressure Resistance

5 kPa

Performance values shown are based on the SH-100 profile system. Completed-unit performance may vary by size, glazing and configuration.

Five Distinct Opening Configurations

Every opening has a different constraint — head height, counter depth, adjacent walls. Choose the motion that fits yours.

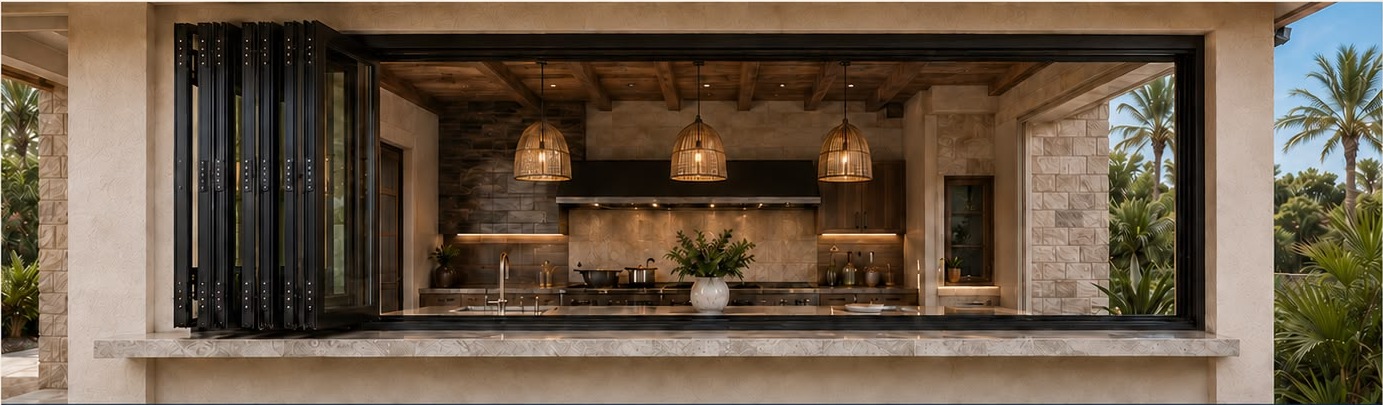

Horizontal Folding Slider

Panels fold and stack tight to one side, clearing the widest possible opening across a full-length servery counter.

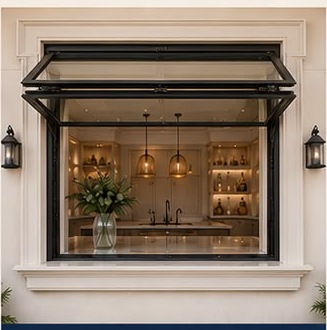

Fold-up pass-through window with decorative casing

Fold-Up · With Casing

Lifts up and out on a single hinge, framed with traditional casing to suit a more detailed elevation.

Fold-Up · Counter Depth

Sized flush to the counter line so the sill and worktop read as one continuous surface.

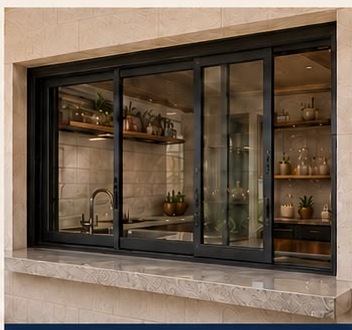

Horizontal Slider

Panels glide sideways within the frame — no swing clearance needed above or beyond the counter.

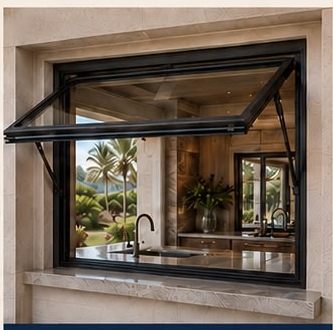

Canopy Style

Swings outward and holds overhead, doubling as a canopy that shelters the counter below.

Fold-Up Operating Sequence

From sealed to fully open, the sash lifts clear of the counter and holds overhead — hands free.

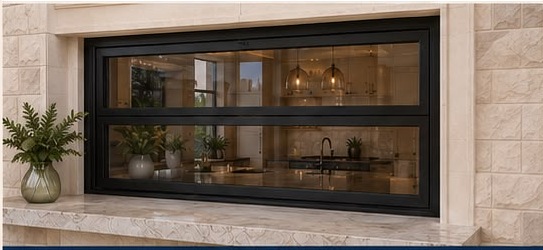

Closed

Perimeter weather seals compress to a fixed-window level of air and water tightness.

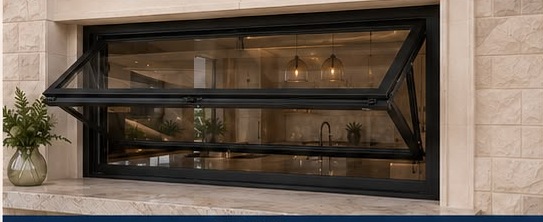

Opening

Premium hinges and operating hardware carry the sash smoothly through its full arc.

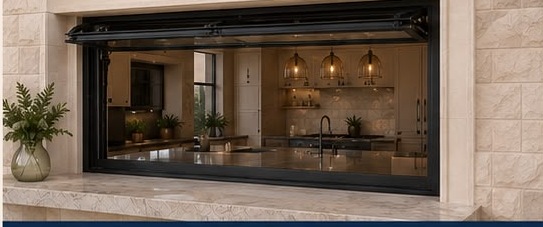

Fully Open

The sash rests overhead, leaving the counter completely clear for service.

Profile & Quality Details

Flush Frame Construction

Oversized Insulated Glazing

Precision Corner Assembly

Weather-Resistant Perimeter Seals

Premium Rollers & Hinges

Optional Integrated Flyscreen

Custom Sizes, Colors & Configurations

Backed by Steinhaus Quality

Applications

Residential

Outdoor kitchens, poolside bars, and servery counters that open the house to the terrace.

Hospitality

Restaurant and hotel bars that serve indoor and patio seating from a single counter.

Commercial

Cafés, ticketing, and service windows that need daily operation and a clean seal.

Need Help Choosing?

Our technical advisors are available to help you specify the perfect solution for your architectural vision.

Contact Our Specialists
